Description

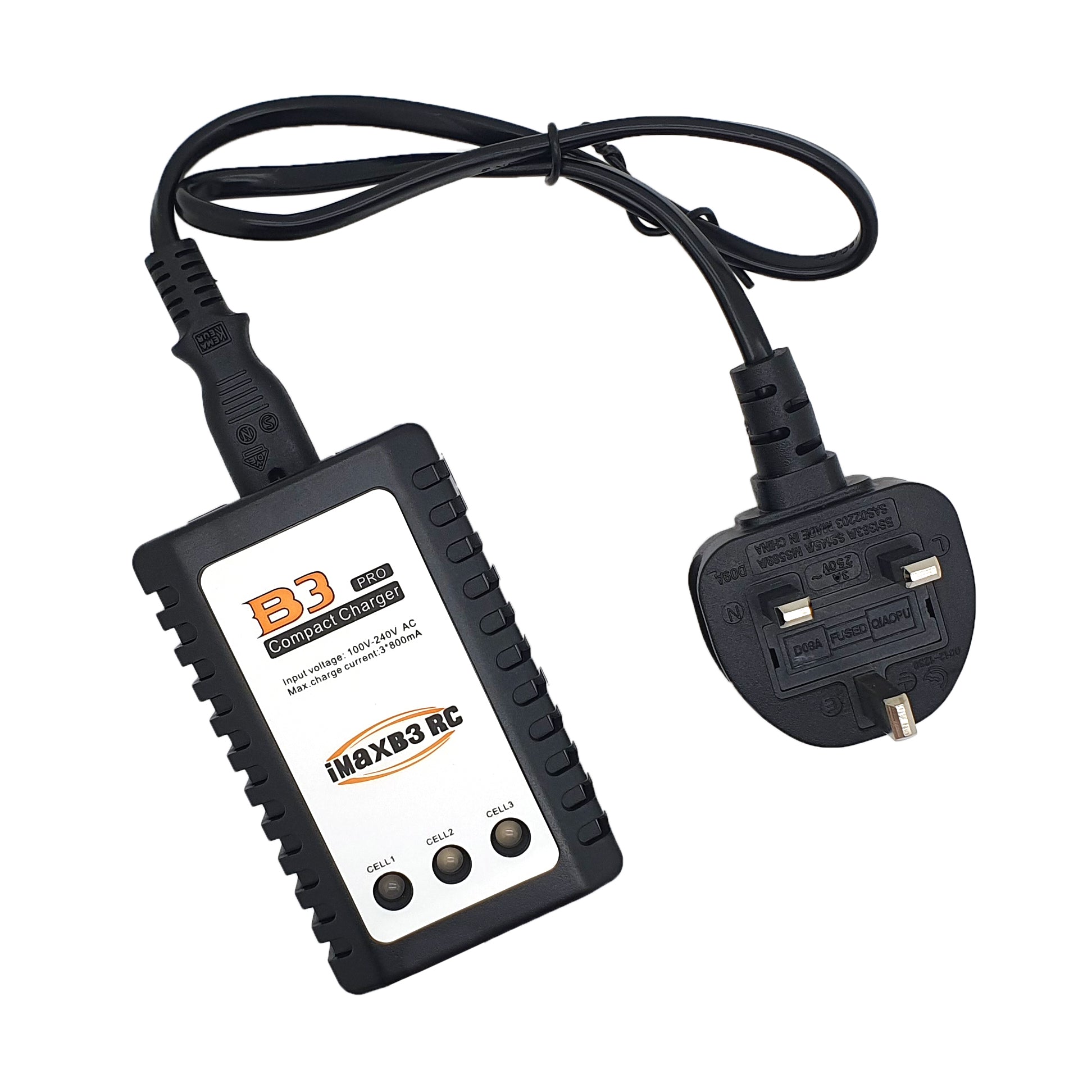

Big Foot Heat B3 Pro Compact Charger (7.4V – 11.1V – UK Plug)
The Big Foot Heat B3 Pro is a compact LiPo balance charger for 7.4V and 11.1V airsoft batteries, supplied with a UK plug, as named. Big Foot is a well-known airsoft accessories brand, and B3-style compact chargers are the small, simple chargers that many players keep at home or in their kit bag for charging AEG batteries.
LiPo batteries give AEGs a sharper trigger response and better rate of fire than older NiMH packs, but they must be charged on a proper LiPo balance charger. The B3 Pro makes that straightforward, with a plug-in-and-charge design and no settings to get wrong.
How balance charging works
A LiPo battery is made up of individual cells: two in a 7.4V (2S) pack and three in an 11.1V (3S) pack. A balance charger connects to the battery’s small balance lead, the thin lead with several wires, and charges each cell to the same voltage. That avoids one cell being over-charged while another is under-charged, which protects both the battery and the user and helps the battery last longer.
B3-style compact chargers charge through the balance lead, so the battery’s main connector type, whether mini Tamiya or Deans, does not matter for charging.
Using it
Plug the charger into the mains, then connect the battery’s balance lead to the port that matches its cell count. The indicator lights show when charging is under way and when the battery is full. Disconnect the battery once it is charged rather than leaving it connected indefinitely, and unplug the charger when you have finished.
Key features
- Compact LiPo balance charger
- For 7.4V (2S) and 11.1V (3S) LiPo batteries (as named)
- UK plug (as named)
- Charges through the battery’s balance lead
- Simple plug-in operation with indicator lights
- Small enough for a kit bag
Compatibility
Designed for 7.4V and 11.1V LiPo batteries with a standard balance lead. Do not use it to charge NiMH batteries, and check the charger label for the cell types it supports before connecting LiFe or Li-ion packs. Because it charges through the balance lead, it works with LiPo batteries fitted with any main connector.
Care and maintenance
Always charge LiPo batteries on a non-flammable surface, ideally inside a LiPo safety bag, and never leave them charging unattended. Do not charge a battery that is swollen, punctured or damaged.
Keep the charger dry and away from heat, unplug it when not in use and check the leads and plug regularly for damage. Store LiPo batteries at storage voltage when they will not be used for a while.
Who is it for?
This charger suits any airsoft player using 7.4V or 11.1V LiPo batteries, whether you need your first LiPo charger or a compact spare to keep in your kit bag.
Please note: Battery not included. LiPo batteries must be charged and stored with care; always follow the safety guidance supplied with your battery and charger.
