Description

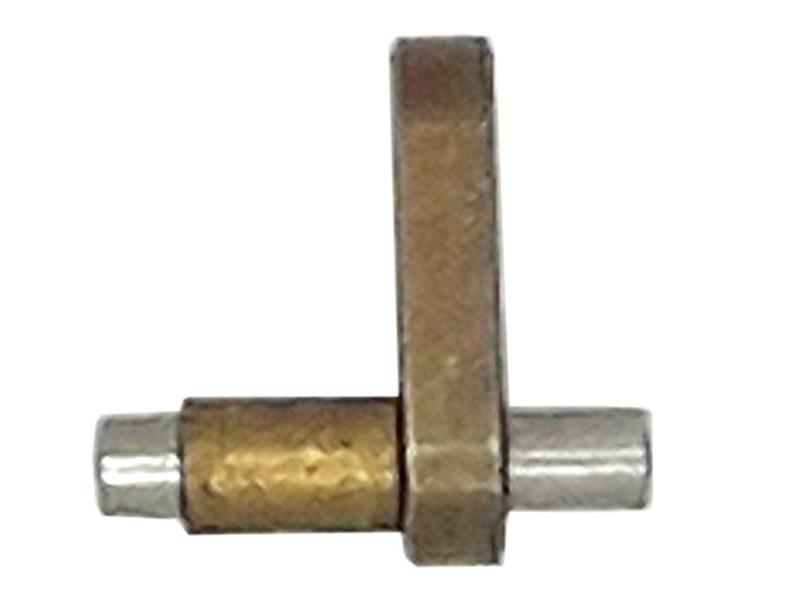

Ares Anti Reversal Latch GB-42
This is an Ares replacement anti-reversal latch, part code GB-42. The anti-reversal latch is a small but important gearbox part: it stops the gears from spinning backwards under spring pressure once the motor stops.
A worn or broken latch can let the gears spin backwards, which can damage gears and the motor, so replacing it promptly is wise. It is also a sensible spare for anyone who services Ares gearboxes.
How it works
After each shot the piston may be partly drawn back with the spring under tension. Without an anti-reversal latch, that tension would drive the gears backwards when the motor stops. The latch engages the teeth of the bevel gear and holds the gears in place until the motor turns again.
Decocking and safety
Because the latch holds the spring under tension, it must be released carefully before opening a gearbox. Always discharge the gearbox in a safe direction or release the latch carefully as described in your manual, and remove the battery first.
Fitting
The latch sits next to the bevel gear and is held by a small spring. Check the new part moves freely and springs back before closing the gearbox. Make sure the spring is properly seated, as a misplaced spring will stop the latch working.
Key features
- Ares anti-reversal latch, code GB-42
- Stops gears spinning backwards
- Protects gears and motor
- Replaces a worn or broken latch
- Useful workshop spare
Compatibility
For Ares gearboxes using this part. Anti-reversal latches vary between gearbox versions and makes, so confirm compatibility with your gearbox before installation, as the original listing advises. The latch spring is not listed as included.
Care and maintenance
When servicing, clean the latch and check the engaging edge for wear. A small amount of grease on the pivot is enough. Replace the latch if it is chipped or rounded.
Who is it for?
This part suits technicians and players servicing an Ares gearbox, and is worth keeping as a spare in the workshop.
Please note: The latch spring is not listed as included. Confirm compatibility before ordering.
