Description
Gate PicoSSR 3

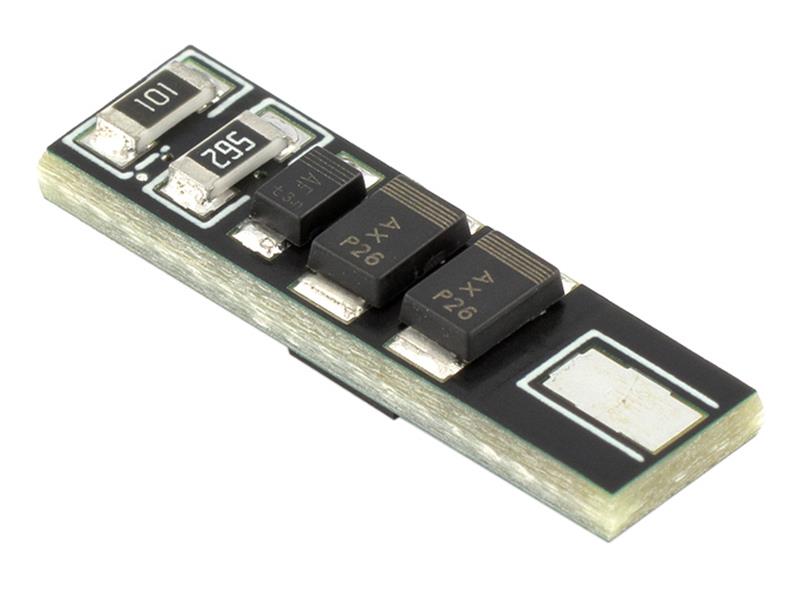

The GATE PicoSSR 3 is a very small, simple MOSFET for electric airsoft guns (AEGs). It is the updated version of GATE’s PicoSSR, and retailers describe its mechanical and electronic design as significantly improved over the earlier unit. Its job is straightforward: take the main current away from the trigger contacts and switch it electronically instead.
GATE is a Polish electronics company that has become one of the best-known names in airsoft electronics. The PicoSSR 3 is its no-frills option for players who want the core benefits of a MOSFET in a unit small enough to fit almost anywhere, including replicas with very little space for wiring.
What it does
A MOSFET is an electronic switch. In a standard AEG, the full battery current passes through the trigger contacts every time you fire, and over time the contacts burn and pit, especially with higher-voltage LiPo batteries. With a MOSFET fitted, the trigger contacts only carry a tiny signal current, while the MOSFET switches the main current from the battery to the motor.
According to retailer descriptions, routing the current this way reduces power loss in the electrical system, prevents contact burning, and can give a slightly higher rate of fire and a quicker trigger response.
Size and fitting
Retailers list the PicoSSR 3 at just 4 x 6 x 21mm, making it one of the smallest MOSFETs available, and it is designed to fit even in replicas with very limited room for electronics. It is supplied with two 60cm signal wires and heat shrink tubing. Fitting involves connecting it into the gun’s motor wiring and running the signal wires to the trigger contacts.
Key features
- Compact MOSFET for AEGs
- Takes the main current away from the trigger contacts
- Reduces power loss and contact burning
- Can sharpen trigger response (as described by retailers)
- Very small: about 4 x 6 x 21mm
- Operating voltage 7.2 to 12.8V (as listed)
- Signal wires and heat shrink included
What’s in the box
- PicoSSR 3 MOSFET
- 2 x signal wires (60cm)
- 3 x heat shrink tubes
Compatibility
Suitable for electric airsoft guns (AEGs) running batteries within the listed 7.2 to 12.8V range. The PicoSSR 3 is a basic switching MOSFET, so it does not offer active braking or programmable fire modes; if you want those features, look at GATE’s programmable units. Check that your gun does not already have a MOSFET or electronic trigger fitted.
Care and maintenance
Once fitted, a MOSFET needs very little attention. Keep wiring tidy and away from moving parts, check that solder joints and heat shrink are sound whenever the gearbox is opened, and keep connectors clean. Disconnect the battery whenever the gun is not in use, and use a battery suited to your set-up rather than relying on electronics to make up for a badly matched spring, motor and battery.
Who is it for?
It suits players who want simple trigger contact protection at a low price, owners of compact AEGs with little room for electronics, and technicians who want a small, reliable MOSFET for customer builds.
Please note: Installation involves working on the gun’s wiring and, for some set-ups, opening the gearbox and soldering. If you are not confident doing this, ask an experienced airsoft technician to fit it.
