Gate TITAN V2 NGRS Advanced Set [Rear Wired]

Description

Gate TITAN V2 NGRS Advanced Set [Rear Wired]

The GATE TITAN V2 NGRS Advanced Set brings TITAN’s programmable control to Tokyo Marui Next Generation Recoil Shock (NGRS) rifles with a Version 2 gearbox, in the rear-wired layout for batteries in the stock. The drop-in unit replaces the trigger contacts with optical sensors and a built-in MOSFET.

TITAN drop-in modules for Tokyo Marui Next Generation (NGRS) rifles are made to suit that system’s own Version 2 gearbox, which differs from a standard V2. The Advanced Set adds GATE’s Advanced firmware and a programming link, making it a good fit for Next Generation owners who want to tune their rifle as well as protect it.

How it works

With TITAN fitted, pulling the trigger no longer closes a pair of metal contacts. Instead, optical sensors read the trigger and the position of the gears, and the built-in MOSFET drives the motor. Knowing exactly where the gears are lets the unit stop the piston in the right place after each shot, apply active braking against over-spin and, if you choose, pre-cock the spring for a faster first shot.

The Advanced Set

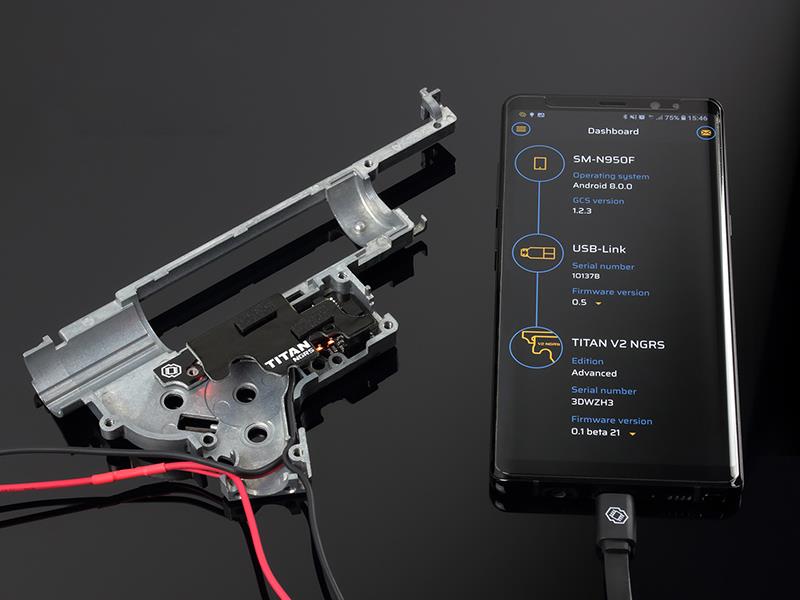

Using the GATE Control Station with the supplied programming link, you can change trigger sensitivity, fire selector configuration, burst length, pre-cocking and rate of fire, view statistics and install firmware updates. It is the middle option in the TITAN range, with more control than the Basic Module and without the Bluetooth link of the Expert Blu-Set.

Wiring

The rear-wired layout routes the power cable back to the stock. Wiring is 16 AWG with Deans-type connectors, and an adaptor for mini Tamiya batteries is supplied. Front-wired and rear-wired versions are not interchangeable without rewiring, so check where your battery sits before ordering.

Key features

• Drop-in TITAN unit for Tokyo Marui NGRS V2 gearboxes
• Rear wired layout
• Optical sensors replace mechanical trigger contacts
• Built-in MOSFET with active brake
• Optional pre-cocking for faster trigger response
• Battery and motor protection
• Settings adjustable through the GATE Control Station

What’s in the box

• TITAN drop-in module with Advanced firmware
• GATE USB-Link programming interface with cables
• Installation kit
• Quick-start instructions

Compatibility

Designed for Tokyo Marui Next Generation Recoil Shock rifles with a V2 gearbox and rear wiring. It is not intended for standard V2 gearboxes. Choose the front-wired NGRS version if your battery sits in the handguard. Check your rifle’s gearbox and wiring layout before ordering, and read GATE’s NGRS installation manual first.

Care and maintenance

Keep the TITAN unit’s optical sensors free of grease and debris whenever the gearbox is open, and keep wiring routed away from the gears. Set the battery protection to match your battery type, disconnect the battery when the rifle is not in use, and store LiPo batteries safely.

Check GATE’s Control Station for firmware updates from time to time, and keep the quick-start guide for fault codes and resets. TITAN protects the electrics, but it cannot make up for a badly matched motor, spring and battery, so keep the rest of the set-up sensible.

Who is it for?

It suits Tokyo Marui Next Generation owners with stock-mounted batteries who want TITAN’s electronic trigger plus full control over fire modes, trigger response and pre-cocking.

Please note: Installation means stripping the gearbox and replacing the trigger assembly. If you are not confident working on AEG gearboxes, ask an experienced airsoft technician to fit it.
