Gate ASTER V2 Basic Module [Front Wired]

Description

Gate ASTER V2 Basic Module [Front Wired]

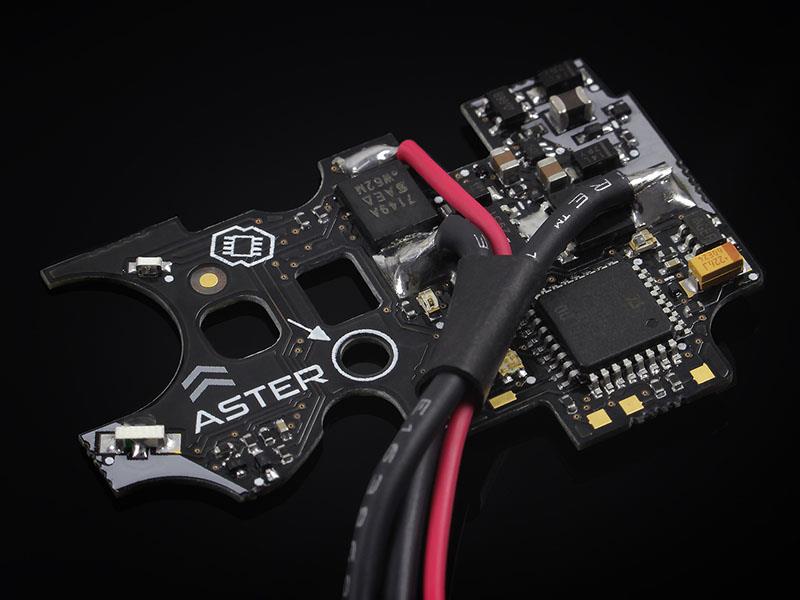

The GATE ASTER V2 Basic Module in the front-wired layout is a drop-in programmable trigger unit for Version 2 gearbox AEGs whose battery sits in the handguard. It swaps the mechanical trigger contacts for optical sensors and an integrated MOSFET, sharpening the trigger and adding programmable fire modes and battery protection.

ASTER is GATE’s more affordable drop-in system, giving many of the benefits of TITAN at a lower price. This Basic Module is the unit itself: it works with its default settings out of the box and can be configured through the trigger, with more options available through GATE’s app.

How it works

ASTER replaces the rifle’s mechanical trigger contacts with optical sensors and a built-in MOSFET. Without contacts to burn or wear, the trigger is crisper and more consistent, and the electronics can offer fire modes and protection that a standard trigger cannot. Fitting replaces the existing trigger assembly inside the gearbox. GATE’s instructions cover the steps, and the quick start guide explains the trigger-programming sequences.

Functions

GATE lists a wide range of features for ASTER’s Basic firmware. Fire mode sets selectable with the trigger include safe-semi-auto, safe-semi-semi, safe-binary-auto and safe-semi-burst, with support for binary trigger and two-stage (AUG-style) trigger modes. Trigger sensitivity can be adjusted, burst can be continuous or interrupted, and the active brake and pre-tune can be set as needed.

Protection features include reverse polarity protection, battery protection for LiPo or LiFe packs, and a low-voltage alarm. Faults are signalled by vibration, with codes explained in the quick start guide, and settings can be reset through the trigger.

Programming and updates

Basic settings are programmed with the trigger, helped by the unit’s RGB LED. For deeper settings, such as rate of fire control, magazine-size limits or a ball counter, the ASTER can be connected to GATE’s Control Station (GCS) app, which also delivers firmware updates. This needs GATE’s USB-Link or Blu-Link, sold separately.

Key features

• Drop-in electronic trigger unit for V2 gearboxes
• Front wired layout
• Optical sensors replace mechanical trigger contacts
• Built-in MOSFET with active brake
• Selectable fire mode sets including binary and burst
• Adjustable trigger sensitivity
• Reverse polarity and battery protection
• Programmable by trigger, or via the GATE Control Station app
• Fault signalling by vibration

Compatibility

Designed for Version 2 gearboxes with front wiring, which suits rifles with the battery in the handguard. Choose the rear-wired version if your battery sits in the stock. KRYTAC and ICS gearboxes need the bolt catch lever removed. Gearbox shells vary between manufacturers, so check fit before ordering. USB-Link or Blu-Link is needed for app programming.

Care and maintenance

Keep the module’s optical sensor area free of grease and debris when the gearbox is open, and keep wiring tidy and clear of the gears. Disconnect the battery when the rifle is not in use, and set the unit’s battery protection to match the type of battery you run.

Check GATE’s Control Station app or website from time to time for firmware updates, and keep the quick start guide handy for fault codes and resets.

Who is it for?

It suits owners of front-wired V2 rifles, such as many M4-pattern AEGs with handguard batteries, who want an electronic trigger and programmable features at a sensible price.

Please note: Installation means stripping the gearbox and replacing the trigger assembly. If you are not confident working on AEG gearboxes, ask an experienced airsoft technician to fit it.
